A Comprehensive Guide: Artificial Turf Padel Court Installation

As padel tennis gains increasing popularity, the market demand for high-quality, specialized artificial turf for padel courts is steadily rising. Installing artificial turf for padel courts is a complex undertaking that requires meticulous planning and precise execution. This guide details the installation process for our factory-produced artificial turf—covering pre-installation preparation, installation steps, edge trimming, gluing, and the application and brushing of sand infill—to help you create a durable, professional-standard padel court.

Pre-installation Preparation

Thorough preparation of the padel court site and materials before laying the artificial turf is crucial, as it directly determines the quality of the seams and the final installation outcome. Please follow these key steps:

Clean and prepare the padel court ground

Carefully clean the surface of the padel court, ensuring the base is free of dust, gravel, oil stains, or debris. The surface must be level, dry, and solid to ensure optimal adhesion.

Inspect artificial turf rolls and labels

Verify the quantity of artificial turf rolls delivered to the site. Ensure that rolls bearing the same color code label are allocated to the same court to avoid color variations caused by mixing different batches or models.

Unroll and relieve tension

It is strongly recommended to unroll and lay out all padel court artificial turf rolls on-site 1–2 days before seaming and gluing. This step is essential for relieving internal tension and stress accumulated during tight factory packaging, allowing the grass fibers to relax and return to their natural state.

Check seaming materials

Confirm that all standard installation materials for each padel court are ready, including:

Specialized seaming tape: Prepare specialized seaming tape (20 cm wide, 100 m long).

PU adhesive glue: Prepare 16 kg containers of single-component PU adhesive (standard usage is one bucket per court), along with tools for opening the bucket, application tools (scrapers/trowels), and a fine-mist spray bottle to accelerate curing.

Steps for Precise Turf Installation

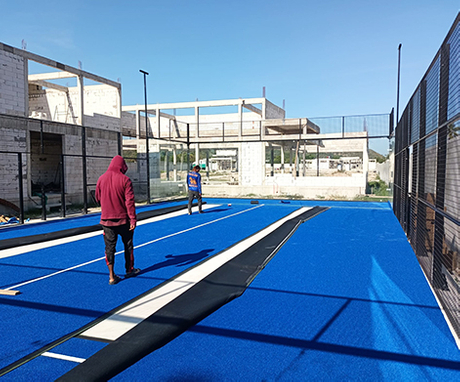

Step 1: Mark Reference Lines

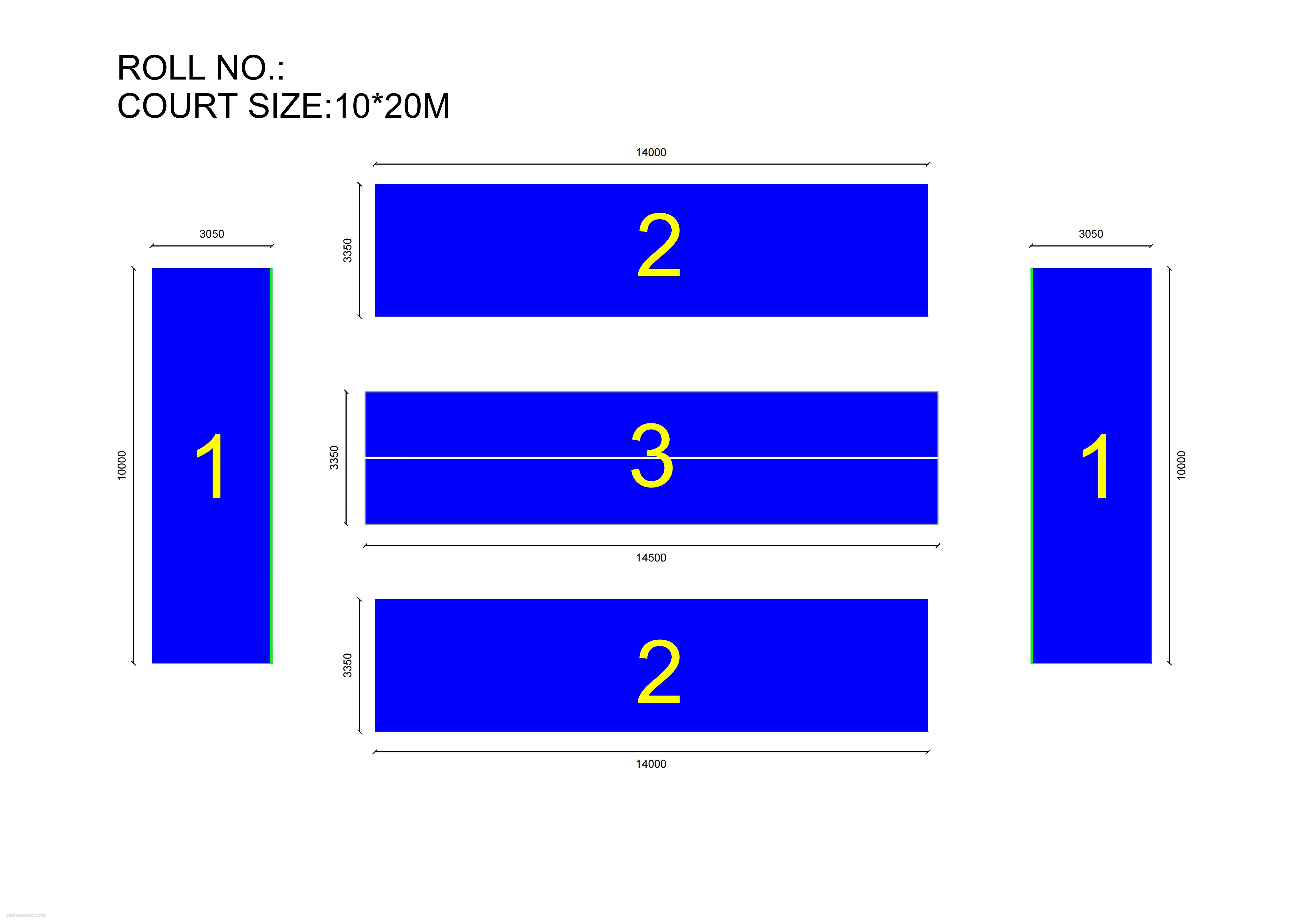

First, refer to the Padel court installation drawings and directly locate and mark the precise positions of the white lines on the prepared installation artificial turf surface. This establishes an accurate positioning framework for laying all subsequent artificial turf rolls.

Step 2: Position Turf Roll No. 1

Unpack the materials and lay the two "No. 1" artificial turf rolls (dimensions: 10.0m x 3.05m) at opposite ends of the court. These rolls are blue and feature pre-integrated white boundary lines.

Step 3: Position Turf Roll No. 3

Next, using the marked reference line framework as a guide, precisely position the "No. 3" turf roll (dimensions: 3.35m x 14.5m; single roll) in the center of the court. The artificial turf roll contains the critical white center line.

Step 4: Position Turf Roll No. 2

After aligning the central section, unroll and lay the remaining two "No. 2" turf rolls (dimensions: 3.35m x 14.0m; solid blue) in the open areas, thereby completing the overall layout of the main playing area.

Step 5: Final Positioning Adjustments

Carefully shift and fine-tune the position of all unrolled turf sections to ensure edges are perfectly aligned and seams are gap-free before proceeding with subsequent cutting or gluing operations.

Careful Edge Trimming

Before the turf undergoes final bonding and seaming, the edges must be precisely measured and trimmed to ensure the joints are flat and seamless. The specific steps are as follows:

Precisely measure the marking position (Measure Roll No. 3 Position)

First, carefully measure the actual installation position of the central turf roll (Roll No. 3) on the field. This step requires strict adherence to the layout drawings to ensure the centerline is positioned with absolute precision.

Trim excess turf edges (Cut the Extra Part)

Using the white markings on the ground as a guide, employ a professional cutting tool to precisely trim and remove the excess blue turf sections (Extra Blue part) from both sides of Roll No. 3.

Refine all joint edges (Trim All Joint Edges Cleanly)

Subsequently, perform a thorough and meticulous trim on the edges where the turf rolls (including Rolls No. 1, 2, and 3) meet. The cuts must be clean, sharp, and free of burrs to facilitate the subsequent seaming and gap-filling processes.

Verify joint flatness (Check and Amend Turf Joint Edge)

Before applying adhesive, carefully re-examine and adjust all turf joint edges. Ensure there is no overlapping or gapping and that the surface is flat and smooth, thereby achieving a seamless, tight, and level finish after bonding.

Controlled Adhesive Application

After the artificial turf has been trimmed, the quantity of adhesive used and the curing time must be strictly controlled to ensure a durable, high-strength bond at the seams. The specific steps are as follows:

Laying the Seam Tape: Center the specialized 20 cm-wide seam tape directly beneath the seam where the two turf sections meet.

Applying and Spreading the Adhesive: Using professional tools, open the container of single-component polyurethane (PU) adhesive designed for turf installation; use the provided spreader to apply and distribute the adhesive evenly across the white seam tape.

Controlling Thickness: Avoid applying excessive adhesive at the turf seams; the coating thickness must be strictly controlled between 2 and 3 mm.

Preventing Premature Curing: Typically, one bucket of adhesive is sufficient for the installation of a single field. To prevent the adhesive from curing prematurely due to prolonged exposure to air, do not open multiple containers simultaneously.

Usage Standards: For a 16 kg container of single-component PU adhesive applied to 20 cm-wide seam tape, the standard coverage length should be between 75 and 78 meters; this quantity has been precisely calculated to cover the four bonding zones required for a single field.

Sand Infilling and Brushing

Following the turf bonding and curing stages, precise sand infilling and brushing operations must be performed; this is the critical final step to ensure surface evenness, optimal ball rebound, and athlete safety. The specific steps are as follows:

Selecting Suitable Sand

 Use quartz sand specifically designed for Padel courts. The sand grains must be rounded—sharp or angular grains are strictly prohibited—to prevent damage to the artificial turf fibers or injury to athletes.

Controlling Grain Size

Grain size must be strictly controlled between 0.5 mm and 0.8 mm to ensure the sand settles evenly to the base of the artificial turf, avoiding a surface that is too hard while maintaining proper drainage performance.

Spreading Quartz Sand

Use professional tools or machinery to spread the compliant quartz sand evenly across the entire artificial turf surface, ensuring no localized accumulation or missed areas.

Brushing the Turf Surface

 After spreading, use professional brushes or machinery to thoroughly groom and brush the artificial turf. This step allows the sand to settle evenly to the base, providing stable ballast support, while lifting flattened padel turf fibers to an upright position, thereby creating a level, firm, and high-quality playing surface.

Final Site Cleanup

Upon completion of the sand infilling and brushing, conduct a final thorough cleanup of the court to remove any remaining debris or tools, successfully concluding the Padel court turf installation process.

Conclusion

Constructing an artificial turf padel court is a significant investment that offers numerous benefits, including a consistent playing experience and low maintenance costs. By understanding the specific installation processes and maintenance requirements of artificial grass, padel court owners and managers can make informed decisions to maximize the value and lifespan of the padel court artificial turf. Utilizing high-quality artificial turf not only ensures an exceptional playing experience for athletes but also allows the padel court to maintain a competitive edge in the increasingly popular sport of padel.
